The Waterproof Warning Light can be used as an auxiliary visual and audible signaling device for waterproof telephone systems, gas detection systems, and safety alarm systems, providing highly visible warnings on site. It is also suitable for public address warning and alarm systems, and can be used independently as a dedicated warning light or aviation obstruction light, meeting the safety warning needs of various industrial environments.

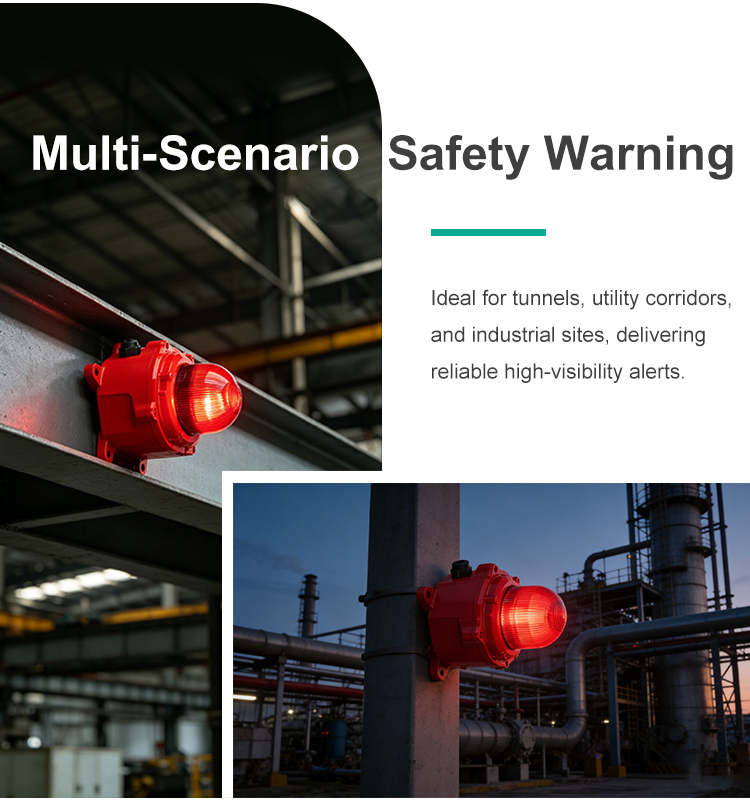

The product is widely used in oil & gas, petrochemical, power, nuclear power, natural gas, chemical processing, refining, ports and marine applications, aviation, offshore drilling platforms, marine engineering, and other harsh industrial environments, providing reliable visual warning protection for personnel safety and equipment operation.
| Operating voltage | DC12V | — |
| Power frequency | 50Hz-60Hz | |
| Power consumption | 5W | |
| 1Hz flash (60 fpm) | ||
| 1.5Hz flash (90 fpm) | ||
| LED reflector rotating type; Rotation speed: 120-140 RPM | 2Hz flash (120 fpm) | |
| Double strike flash 50ms on, 150ms off x | ||
| Light source | 2, 600ms off | |
| (optional) | Triple strike flash 150ms on, 150ms off x | |
| 3, 600ms off | ||

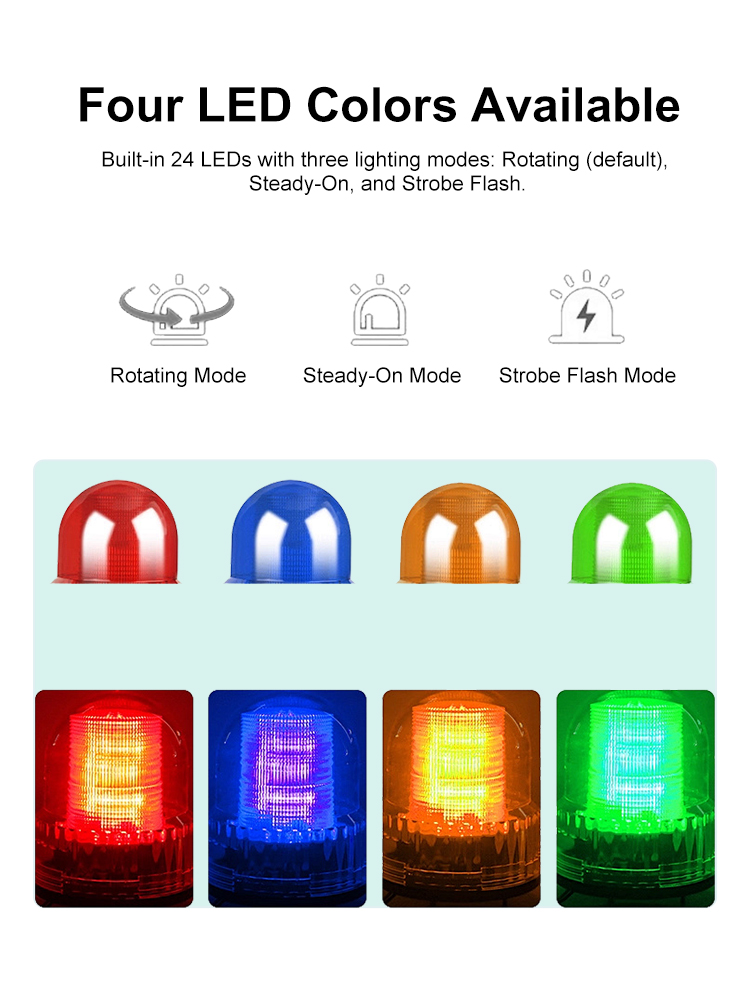

| LED flashing & strobe type (Power: 5W) | High Power Steady | |
| Low Power Steady | ||
| LED service life ≥ 60,000 hours | ||
| Warning mode | Rotating beacon | |

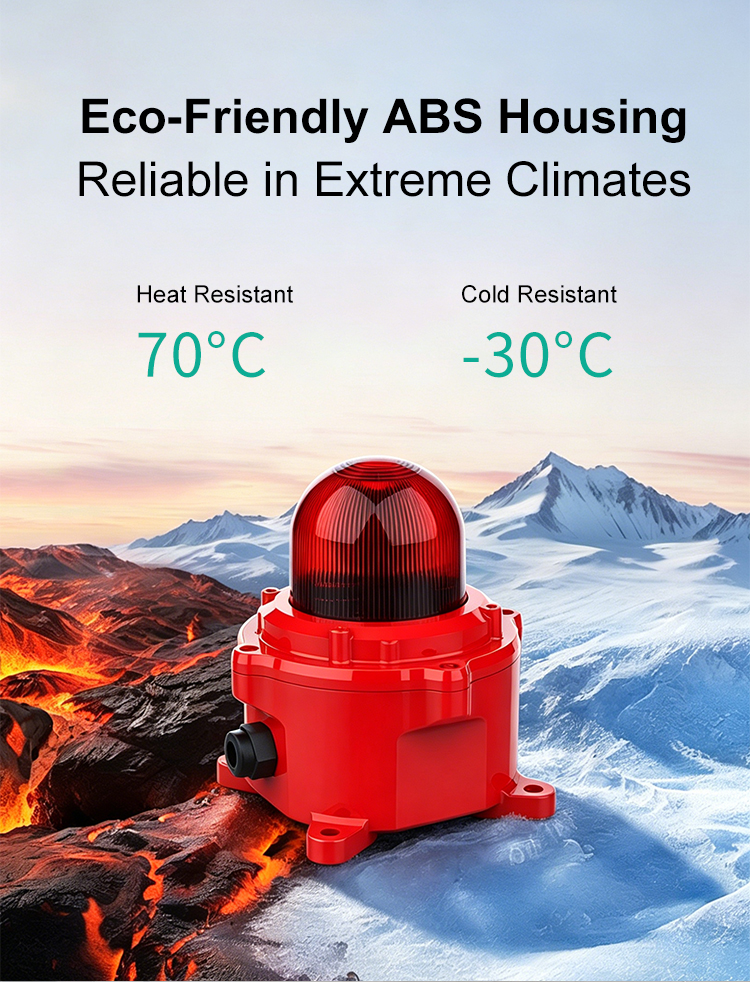

| Housing material | ABS | Optional |
| Protection rating | IP65~IP66 | — |
| Operating temperature | -30℃ ~ 70℃ | |
| Operating humidity | 10% ~ 95% RH (Non-condensing) | |

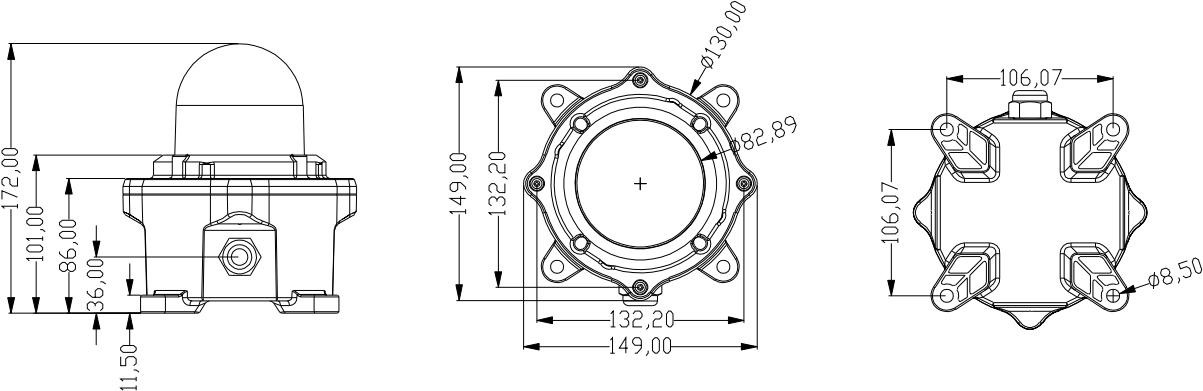

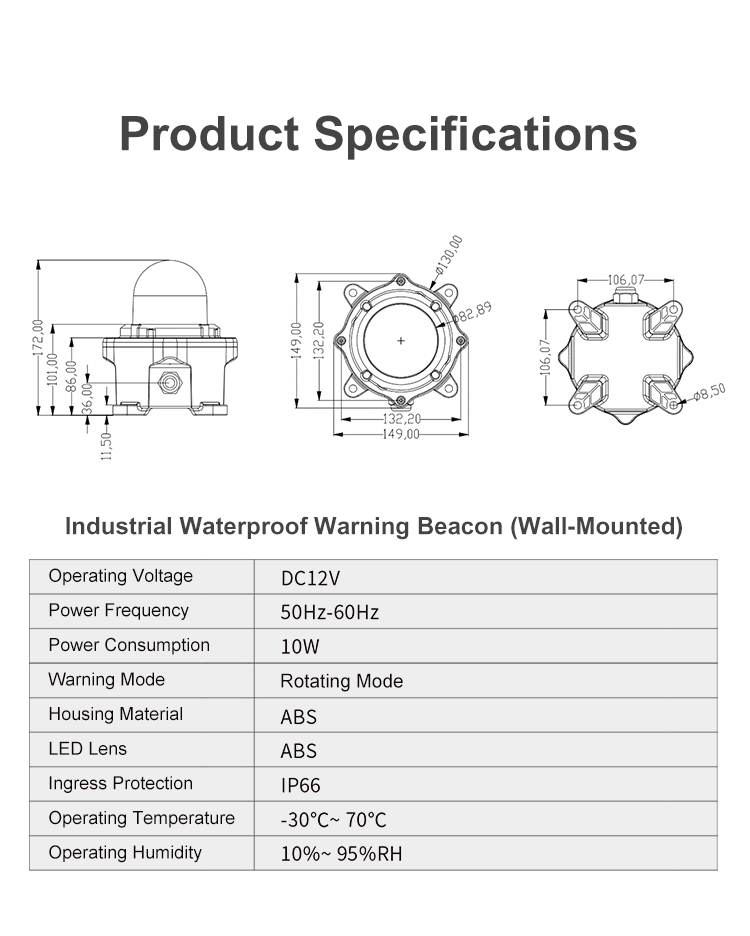

| Product Dimensions: | 149* 149* 172 mm, Packaged in carton box |
